Single-Phase Immersion Cooling
for AI and High-Performance Servers

AquaRack

Single-Phase Immersion Cooling
for AI and High-Performance Servers

AquaRack

SDT PGU (Pulse Generator Unit)

Overview

AquaRack immerses servers directly in electrically non-conductive cooling fluid for uniform, reliable heat removal. It significantly reduces cooling power consumption while maintaining performance in high-density GPU and CPU deployments. By reducing data center space requirements and noise, AquaRack lowers the total cost of ownership and supports ESG goals.

Why AquaRack

Energy Efficiency

Reduce cooling power consumption by up to 90% (based on cooling load).

Space Efficiency and Optimized Maintenance

Support high-density cooling of up to 50 kW per 21U rack.

Enhanced Reliability and Durability

Maintain stable cooling performance even under heavy GPU and CPU workloads.

Advancing ESG Through Sustainable Cooling

Reduce energy consumption and CO₂ emissions by 30–50%.

Lower Maintenance Costs

Prevent dust and moisture ingress to reduce server failures.

Server Waste Heat Recovery for a Circular Energy Economy

Recover server waste heat for heating and other secondary uses.

Models for Your Needs

SDT PGU (Pulse Generator Unit)

Real-Time Centralized Monitoring

Monitor upper and lower tank temperatures, power consumption, PUE, and CDU flow rate and pressure in real time.

Threshold Alerts & Data Insights

Set alerts for each metric and respond promptly to issues. Export data as CSV for long-term analysis.

Control Commands & Activity Logs

Apply control commands instantly to suit operating conditions and log every action.

Models & Key Specifications

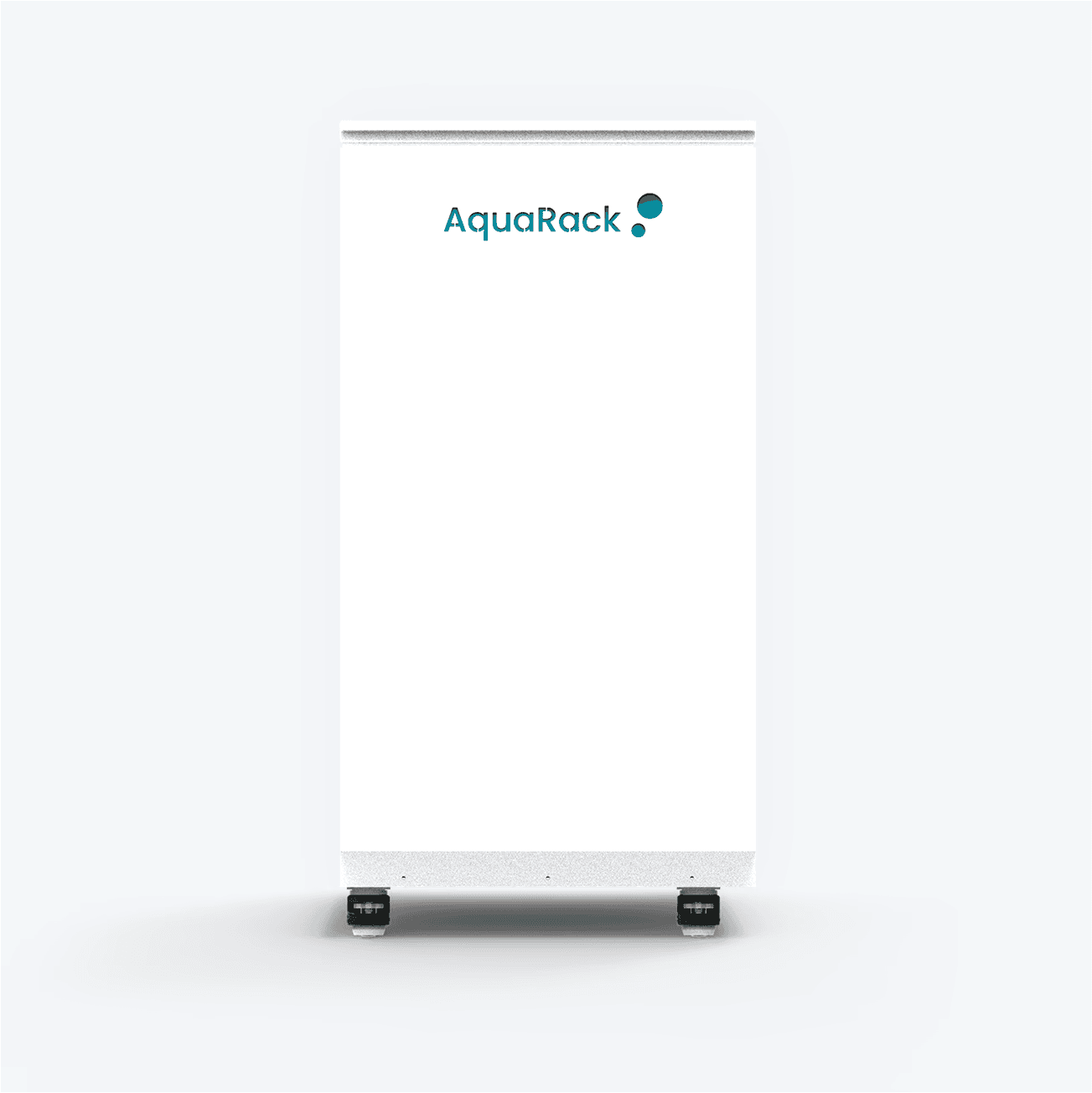

AquaRack 21U

AquaRack 21U

Cooling Capacity

50 kW

Dimensions

W2.5 × D1.2 × H1.8 m

Immersion Fluid Volume

Approx. 700 L

Weight (Including Immersion Fluid, Excluding Servers)

Approx. 1.2 metric tons

Cooling Water Flow Rate

≥ 150 L/min

Cooling Water Supply Temperature

≤ 32°C

CDU Power Supply

380 V AC, Three-Phase, 32 A × 2

PDU Power Supply

220 V AC, Single-Phase, 50 A × 6

Equipment Communication Interface

Modbus RTU over RS-485

Supported Server Size

Up to 900 mm; tank customization available

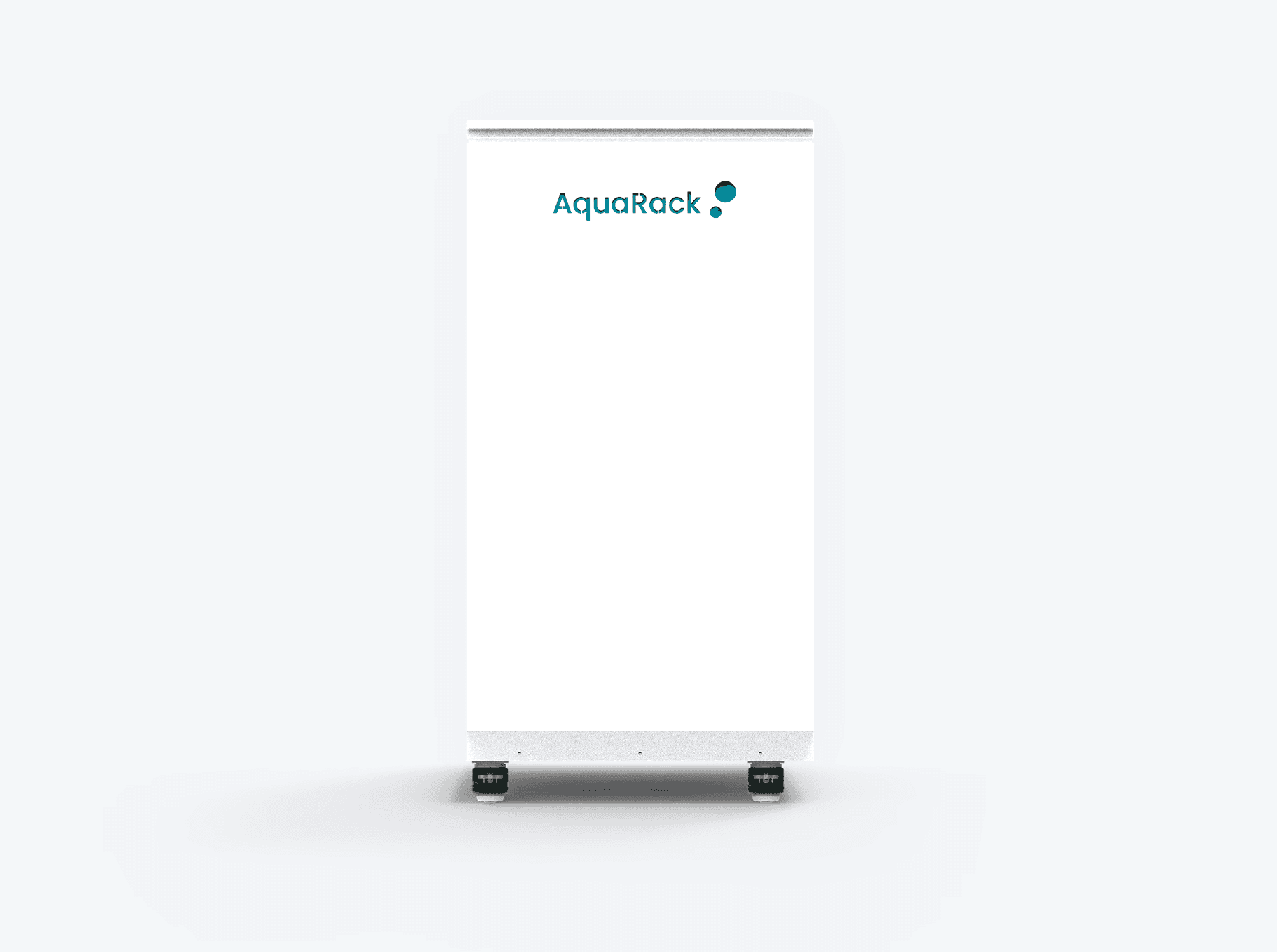

AquaRack 42U

AquaRack 42U

Cooling Capacity

100 kW

Dimensions

W3.5 × D1.2 × H1.8 m

Immersion Fluid Volume

Approx. 1,300 L

Weight (Including Immersion Fluid, Excluding Servers)

Approx. 1.9 metric tons

Cooling Water Flow Rate

≥ 300 L/min

Cooling Water Supply Temperature

≤ 32°C

CDU Power Supply

380 V AC, Three-Phase, 32 A × 2

PDU Power Supply

220 V AC, Three-Phase, 63 A × 4

Equipment Communication Interface

Modbus RTU over RS-485

Supported Server Size

Up to 900 mm; tank customization available

Customized Immersion Cooling

We provide immersion cooling solutions tailored to diverse requirements, including specialized experimental environments, rack specifications, and space constraints. The modular AquaRack offers a wide range of customization options. Drawing on its Quantum Design and Manufacturing expertise, SDT delivers integrated immersion cooling solutions that combine performance, scalability, and reliability.

01

Requirements Analysis

02

Structural Design & Simulation

03

Prototyping & Functional Testing

04

Performance Validation

05

Delivery & Technical Support

Tank

Tank / Door Color: CMYK / Pantone · Logo: Customizable · Logo Color: CMYK / Pantone · Logo Application: Printing / Sticker / Nameplate · Front Panel Material: SUS304 Stainless Steel / Acrylic / Tempered Glass · Number of Casters: 4–6 · Caster Type: Heavy-Duty / To Be Confirmed*

CDU

Electrical Configuration

Software

Tank

Tank / Door Color: CMYK / Pantone · Logo: Customizable · Logo Color: CMYK / Pantone · Logo Application: Printing / Sticker / Nameplate · Front Panel Material: SUS304 Stainless Steel / Acrylic / Tempered Glass · Number of Casters: 4–6 · Caster Type: Heavy-Duty / To Be Confirmed*

CDU

Electrical Configuration

Software

Customization Case Study: National Research Institute K

Customization Case Study: National Research Institute K

Customization Case Study: National Research Institute K

AquaRack for testing tailored to next-generation semiconductor research environments

AquaRack for testing tailored to next-generation semiconductor research environments

AquaRack for testing tailored to next-generation semiconductor research environments

Requirements

We couldn't visually check the chip status LEDs and physical indicators, and there was no way to secure small chips or special specimens inside the cooling oil.

Custom Engineering

We redesigned the front using highly heat-resistant and highly transparent materials to allow for easy observation, and fabricated a dedicated mounting bracket for small chips.

Key Results

We secured test data integrity and rapidly built tailored infrastructure to boost research productivity.

Requirements

We couldn't visually check the chip status LEDs and physical indicators, and there was no way to secure small chips or special specimens inside the cooling oil.

Custom Engineering

We redesigned the front using highly heat-resistant and highly transparent materials to allow for easy observation, and fabricated a dedicated mounting bracket for small chips.

Key Results

We secured test data integrity and rapidly built tailored infrastructure to boost research productivity.

국책연구기관 K사에 납품한 투명 전면 패널 AquaRack

Modular Immersion Cooling Data Center AquaCell

Modular Immersion Cooling Data Center AquaCell

Modular Immersion Cooling Data Center AquaCell

What is a Modular Immersion Cooling Data Center?

What is a Modular Immersion Cooling Data Center?

What is a Modular Immersion Cooling Data Center?

This self-contained, modular immersion cooling data center integrates multiple immersion cooling units, cooling systems, and power and network infrastructure into a single custom container. You can modularly deploy multiple AquaCell units to suit your site conditions and scale up in phases.

1 AquaCell Module

AquaRack immersion cooling system
AquaRack immersion cooling system

AquaRack 01

AquaRack immersion cooling system
AquaRack immersion cooling system

AquaRack 02

AquaRack immersion cooling system
AquaRack immersion cooling system

AquaRack 03

AquaRack immersion cooling system
AquaRack immersion cooling system

AquaRack 04

Network

Power Supply

Network

Power Supply

Configuration Integrated into a Single AquaCell Module

Configuration Integrated into a Single AquaCell Module

AquaRack Equipment

Power Distribution + UPS

Network Rack · Primary/Redundant Dual Switches

Integrated Control Dashboard, Security, Fire Fighting

Scalability

Start with a single unit and expand as needed. Deploying multiple AquaCells transforms your entire site into one unified data center.

AquaCell modular cooling installation

AquaCell 01

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 02

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 03

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 04

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 01

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 02

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 03

Cooling, Power, and Network Integration

AquaCell modular cooling installation

AquaCell 04

Cooling, Power, and Network Integration

AquaCell modular cooling installation
AquaCell modular cooling installation

AquaCell 01

Cooling, Power, and Network Integration

AquaCell modular cooling installation
AquaCell modular cooling installation

AquaCell 03

Cooling, Power, and Network Integration

AquaCell modular cooling installation
AquaCell modular cooling installation

AquaCell 02

Cooling, Power, and Network Integration

AquaCell modular cooling installation
AquaCell modular cooling installation

AquaCell 04

Cooling, Power, and Network Integration

Overwhelming deployment speed

While traditional new construction takes 18 to 36 months for design, permitting, and building, modular solutions can be operational in just 2 to 8 months by running factory fabrication and site preparation in parallel. It is the fastest way to secure infrastructure right when power is needed.

Traditional New Construction

18–36 months

AquaCell Modular

2–8 months

Flexibility Beyond Site Constraints

Traditional data centers have fixed floor loads, ceiling heights, and power capacities, requiring extensive reinforcement work to install high-density immersion cooling equipment. A modular immersion data center bypasses these floor load, ceiling height, and power constraints using a zone-based, plug-in block approach. It also reduces on-site piping and commissioning costs by 25–35%, cutting both retrofit time and expenses simultaneously.

Standardized design for easy repeat deployment

By repeatedly manufacturing verified units of the same specifications, there is no need to redesign for every site. This is especially efficient for infrastructure that expands across multiple locations, such as edge and regional hubs.

Phased expansion in line with demand

Instead of overinvesting from the start, simply add units as demand grows. This lowers initial capital requirements and provides predictable costs based on standard factory pricing, reducing the risk of cost fluctuations by 15% to 25% compared to new construction.

Pre-engineered

Cooling fluid filling, pump and CDU integration, leak testing, and trial operation are all completed at SDT's manufacturing facility before on-site installation. Compared to assembling and validating each component on-site, this significantly reduces defects and commissioning risks, ensuring stable operation right from day one.

Applications

Data Centers

Generative AI and Deep Learning

High-Performance Computing

Edge Computing

Research Labs and Testing Facilities

Finance and Trading

Applications

Data Centers

Generative AI and Deep Learning

Edge Computing

High-Performance Computing

Finance and Trading

Research Labs and Testing Facilities

Find the Right Configuration for Your Data Center

Share your installation requirements and server specifications, and we’ll recommend the right model and customization options.

Find the Right Configuration for Your Data Center

Share your installation requirements and server specifications, and we’ll recommend the right model and customization options.

Find the Right Configuration for Your Data Center

Share your installation requirements and server specifications, and we’ll recommend the right model and customization options.
